AUTOMOTIVE-GRADE POLYMER HYBRID CAPACITORS for HUD APPLICATION

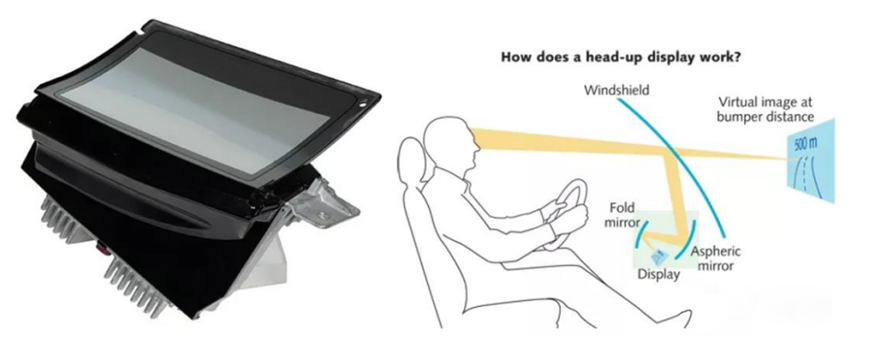

Introduction of HUB
HUD displays all important information on front windshield during driving that helps the drive no need to look down the instrument screen. In the future, With the MEB configuration changing it will be widely used in EVs. The future potential market is huge.
Functions of HUD:
* HUD connects to the car data information system and integrates it into big data and display the information on windshield, such as oil consumption, oil level, driving speed, miles, time, navigation etc.,
* HUD adds more convenience during driving. It allows the drivers to see all the important information more intuitively, reducing driver fatigue.
Functions of Conductive Polymer Hybrid Aluminum Electrolytic Capacitor in HUD

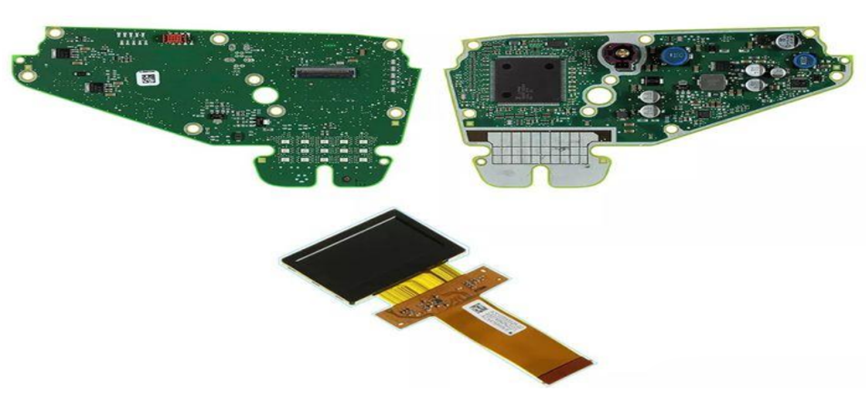

Generally 4-6 polymer hybrid aluminum electrolytic capacitors are used in HUD solution. The main functions are filtering and storing energy, reducing EMI and EMS of the device, and smoothing the output at the same time.
Electric Characteristics:
* Low ESR: low heat dissipation, low noise and stable output during working
* Wide temperature performance: Ensure the devices can be working under multiple temperature conditions.
* Anti-vibration: Ensure the device can perfectly perform under all kinds of vibration.
* Wide frequency stability: in a wide frequency range , the capacitor storage function and filtering function can stay a stable level.

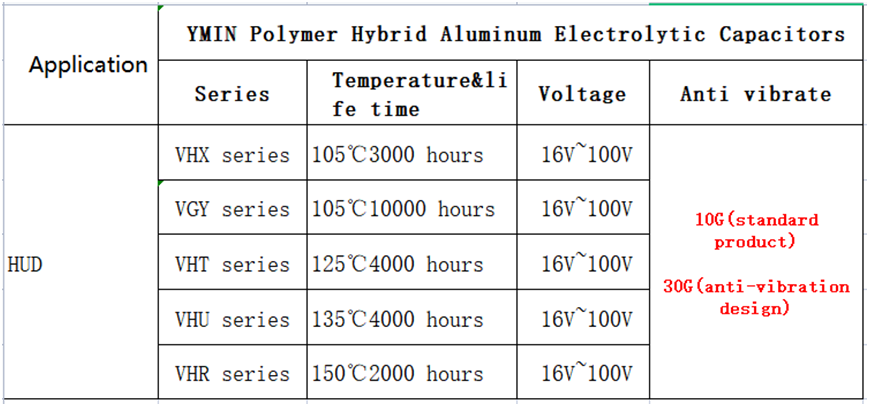

Our solutions for you:
Advantages of YMIN Polymer Hybrid Aluminum Electrolytic Capacitors:
Sufficient voltage range: our capacitor can withstand 1.5 times of the rated voltage;
Withstand wide temperature: the capacitance of our capacitor stays at a stable level under -55℃-150℃. The capacitance remains above 90% at -55℃, and not more 1.2 times of the rated value at +150℃. The ESR stays at low value to make sure the EMC is within the standard.
High frequency characteristic:
In the range of 10KHz~600KHz, The ESR remains relatively stable and low value, so it can filter the circuit clutter and noise in this wide frequency. Meantime, when high frequency and large ripple current passing through the capacitor, the capacitor generates less heat, thus ensuring the capacitor’s ability to withstand the ripple current and self-temperature rise, and improving the reliability of the capacitor.
Endurance high temperature: At a high temperature of +125°C or even 150°C, the capacitor can continue to work stably. After long-term high-temperature operation, the capacitance of the capacitor can still maintain about 80% of the initial value, thus ensuring stable and reliable operation of the whole device. The device performance remains at a high level.

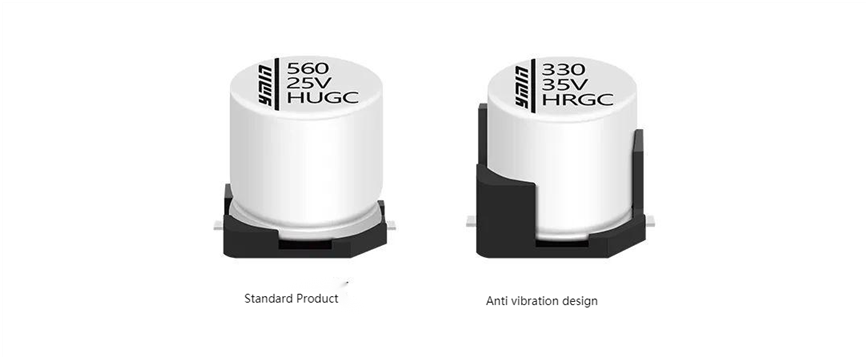

Excellent anti-vibration characteristic:
* Standard product: 10G vibration strength
* Anti vibration design: 30G vibration strength
* Excellent anti vibration ability make sure the HUD working stable and reliable at all circumstance.
